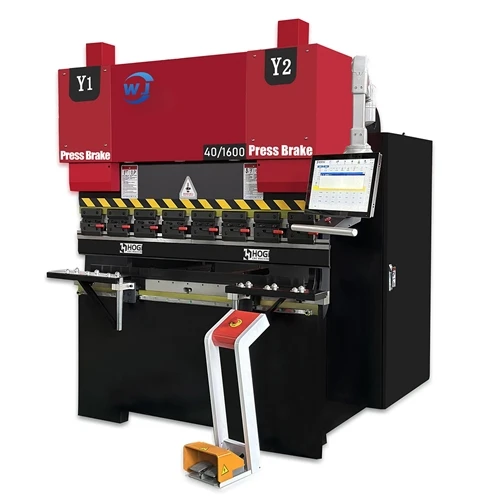

What Is a Servo Press Brake?
A servo press brake is a bending machine that uses a servo motor as its core control power source, distinguishing it from conventional valve-controlled hydraulic press brakes that rely on solenoid valves to regulate hydraulic oil flow. Through precise control of motor speed and rotation direction, it achieves fine adjustment of the slide's motion trajectory and bending pressure. In terms of bending accuracy, response speed, and energy consumption, it outperforms traditional machines and is becoming the mainstream direction of press brake technological evolution.
Two Main Technical Approaches
The servo press brake market is divided into two main technical approaches, each suited to different tonnages and processing scenarios.
The first is the pump-controlled servo press brake, built on a "servo motor + hydraulic pump" architecture. It retains the high tonnage and heavy-load capacity of hydraulic systems while replacing the traditional valve block with a servo direct-drive oil pump, eliminating the throttling stage for faster response, more stable accuracy, and lower energy consumption. It is the mainstream upgrade solution for medium- and high-tonnage machines.
The second is the all-electric servo press brake, which uses a "servo motor + ball screw" transmission structure with no hydraulic medium at any stage. Offering higher precision, a cleaner and more environmentally friendly process, and simpler maintenance, it is better suited to low-tonnage, high-precision sheet metal processing.
Where Do the Core Advantages Lie?
Compared with traditional valve-controlled hydraulic press brakes, the advantages of servo press brakes center on four key dimensions.
First, greater accuracy and stability. Servo closed-loop control is unaffected by oil temperature fluctuations or fluid degradation, delivering better angular consistency during long production runs and helping reduce scrap rates.
Second, higher production efficiency. With fast servo response, slide movements-rapid descent, pressure holding, and return strokes-are more responsive, shortening the cycle time per workpiece and delivering a clear boost in continuous production capacity.
Third, significant energy savings. Servo motors deliver power on demand, with extremely low energy consumption during idle standby, cutting energy use by over 35% compared with same-tonnage traditional hydraulic machines and offering substantial long-term cost advantages.
Fourth, greater production flexibility. Paired with a CNC system, process parameters are easy to adjust, supporting complex operations such as variable-angle and off-center bending, and enabling rapid changeovers for high-mix, low-volume production.
Which Scenarios Should Prioritize a Servo Upgrade?
A servo press brake is the better upgrade choice if your processing scenario matches any of the following.
The first is high-volume standardized production, such as orders for electrical cabinets, distribution boxes, appliance housings, and fire safety enclosures, where production pace is demanding. Servo machines effectively increase output while keeping quality consistent.
The second is precision sheet metal processing, such as electronic instruments, medical devices, and aerospace components, where strict dimensional and angular tolerances are required. The accuracy and stability of a servo solution offer greater assurance.
The third is high-mix, low-volume production with varied orders and frequent tool changes. Servo machines offer fast setup and storable process programs, effectively shortening changeover time.
In addition, for stainless steel products and food equipment processing where surface cleanliness is critical, an all-electric servo solution is the preferred choice, completely eliminating the risk of oil contamination on workpieces.
How to Choose: Pump-Controlled or All-Electric?
The selection comes down mainly to tonnage and scenario: for medium- to high-tonnage, heavy-load, and continuous production applications, a pump-controlled servo solution is the priority, combining the high tonnage of hydraulics with the energy efficiency and performance of servo control; for low-tonnage, high-precision, clean production, or applications sensitive to surface quality, an all-electric servo solution is more suitable. Both deliver better overall performance than traditional machines in their respective scenarios.
Servo press brakes are the core equipment driving sheet metal processing from "rough fabrication" to "precision manufacturing." Whether
pump-controlled or all-electric, each excels in its suited application. As quality requirements across the industry continue to rise, servo technology is accelerating toward becoming standard on press brakes, advancing both quality and efficiency throughout the sheet metal processing sector.
