The impact of bending sequence on precision is often overlooked. Each bend introduces a tiny deviation, and an unreasonable sequence allows errors to accumulate-for example, three bends each with a 0.1mm deviation can accumulate to over 0.5mm if the sequence is wrong, potentially causing interference and reducing efficiency. Mastering four principles can effectively reduce cumulative error.
1. Short Edges First, Then Long Edges - Stabilize the Datum and Avoid Interference

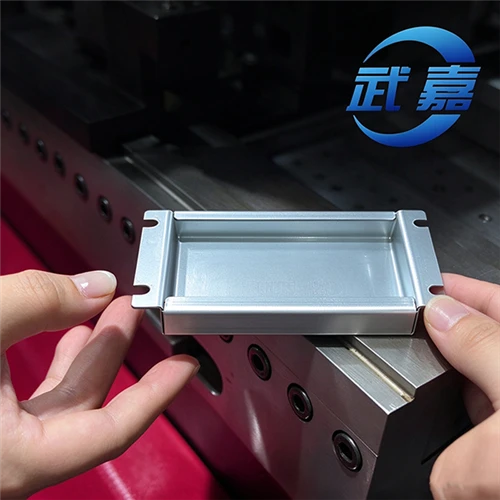

For parts with bends on all four sides, process the short edges first, then the long edges. Forming the short edges first quickly establishes local rigidity, making positioning more stable for subsequent long-edge bends. If long edges are bent first, the sheet is prone to sagging and warping during short-edge processing, and may even interfere with the die. For box-type parts, following the "short edge → long edge" sequence provides more stable positioning and better dimensional consistency.
2. Outside First, Then Inside - Reduce Datum Conversion Errors
Complete the outer contour bends first, then process the internal features. Forming the outer contours first creates a unified datum surface, which all subsequent internal processes share, reducing conversion errors. If internal bends are done first, the outer contours lack a fixed formed surface, requiring re-alignment for each process-lowering efficiency and increasing dimensional dispersion. For parts with internal stiffeners, following this sequence ensures the accuracy of key external dimensions.
3. Simple First, Then Complex - Preserve Room for Correction
Prioritize large-angle, simple bends before small-angle, complex features. Simple bends done first leave room to adjust if deviations occur; complex bends placed later benefit from the part's now-formed rigidity, yielding more stable precision. At the same time, performing large-angle bends first gradually releases internal stress (especially in high-strength steel or thick plates), reducing the risk of subsequent cracking.
4. Minimize Clamping and Die Changes - Reduce Positional Cumulative Deviation
Complete as many bends in the same direction as possible in a single clamping, and group processes using the same die specification together. Every re-clamping and die change introduces new positioning errors; the more scattered the processes, the greater the cumulative error. Grouping processes not only controls error accumulation but also shortens auxiliary time. When planning, sort by bending direction and die specification to minimize clamping and die-change frequency.
5. Practical Notes
These principles are universal basics and should be adapted flexibly to the part's structure-never apply them rigidly. Before bending, use the CNC system's simulation function to preview the bending path and check for interference. Before mass production, perform first-piece verification and proceed only after confirming dimensions are within tolerance. All parts in the same batch must use a unified bending sequence to avoid variations in springback and stress distribution that could affect interchangeability.
Bending sequence may seem a minor detail, but it is actually a key means of controlling forming precision. Especially for precision parts with multiple bends, a reasonable process sequence requires no additional equipment investment yet effectively reduces cumulative error and improves yield-a practical, low-cost method for sheet metal shops to boost quality and efficiency.
